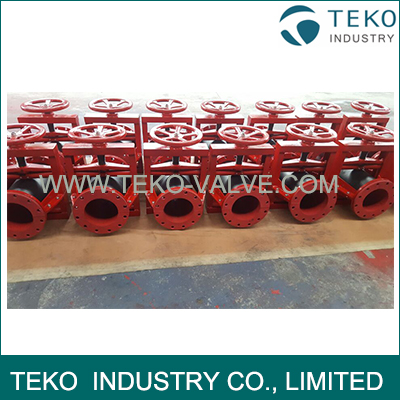

Centerline Closure Red Valve Pinch Valve Heavy Duty Open Body With Fabricated Steel Body

Centerline Closure Heavy Duty Open Body Pinch Valve With Fabricated Steel Body

Product Specifications

Material:

Body-Cast iron, carbon steel

Pusher- cast iron, carbon steel

Stem: carbon steel, Stainless Steel

Sleeve:

NR

CR

EPDM

Size:

DN15~DN700mm

Pressure:

10bar(DN50-DN150mm)

6bar (DN200 and above)

Flange drillings:

As per DIN PN10 / ANSI 150Lb

Structure:

Open body / Closed Body for options

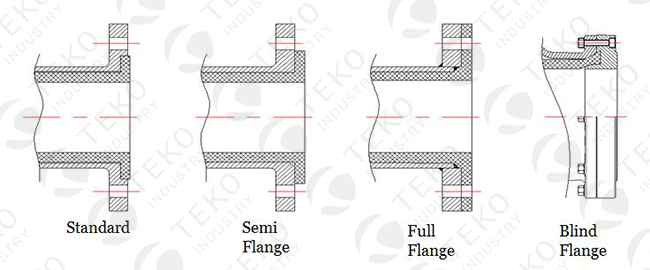

Flange Seal Face

Applicaitions

• Water and wastewater treatment
• Mining and metal industries
• Mineral processing
• Power generation
• Sand and gravel
• Chemical
• Pulp and paper
